Podrobný popis

• RÁM

  Carbon HMF
  Integrated Suspension Technology
  Virtual 4 Link kinematic / Adjustable head angle
  Syncros Cable Integration System
  TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
  Range Extender Ready

• ZDVIH

  Front: 160mm / Rear: 155mm

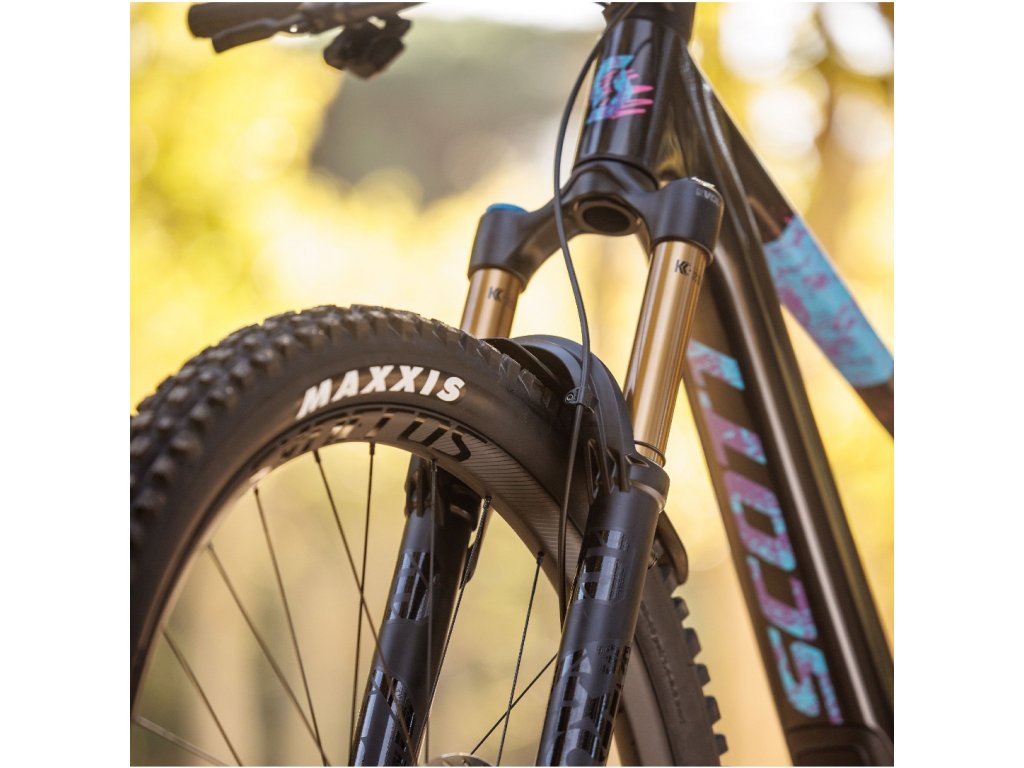

• VIDLICE

  FOX 36 Float Factory Grip 2 Air / Kashima
  HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle
  44mm offset / tapered steerer
  160mm travel

• TLUMIČ

  FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion
  Kashima / SCOTT custom w. travel / geo adj.
  3 modes: Climb-Ramp Control-Descend
  Custom large Air volume / Comp & Reb. Adj.
  Travel 155-100-Climb / T185X55mm

• OVLÁDACÍ SYSTÉM

  TracLoc Technology
  Rear Suspension & Dropper Remote
  3 Rear Suspension modes

• POHONNÁ JEDNOTKA

  TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

• BATERIE

  TQ Internal 360Wh

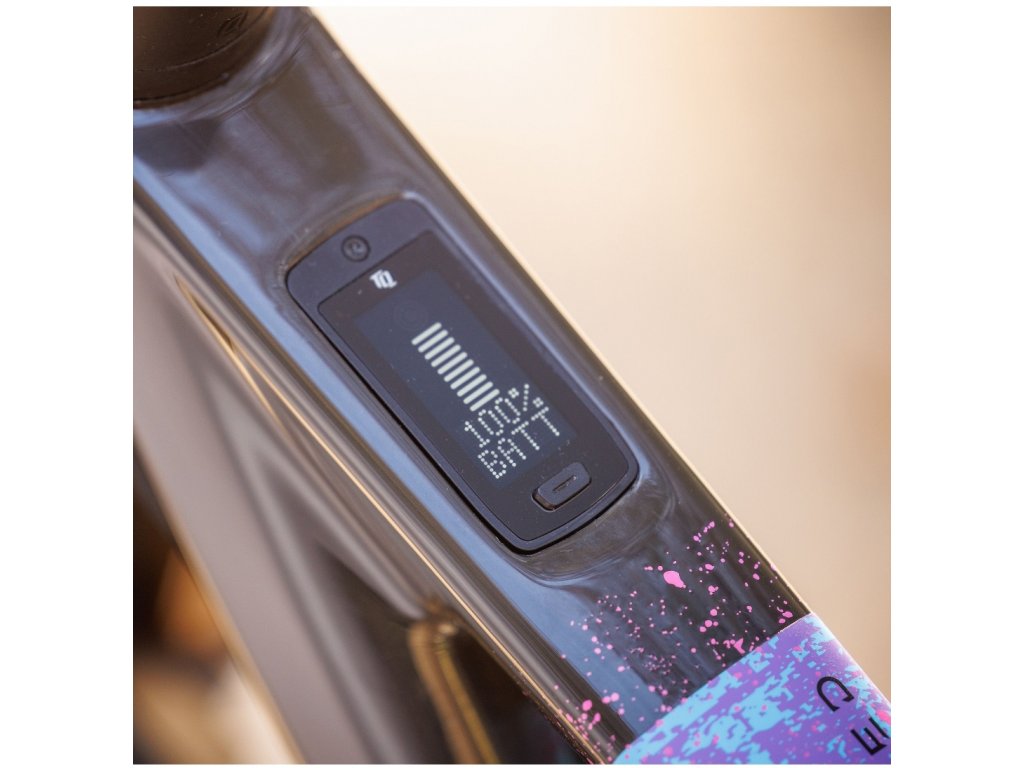

• DISPLEJ

  TQ HPR
  Bluetooth / ANT+ / Dedicated Smartphone app

• NABÍJEČKA

  TQ 100-240V-4A

• PŘEHAZOVAČKA

  SRAM GX Eagle AXS Transmission 12 Speed
  Wireless Electronic Shift System

• ŘAZENÍ

  SRAM GX Eagle AXS Rocker Controller

• KLIKY

  e*thirteen / e*spec Race Carbon / 34T

• VODÍTKO ŘETĚZU

  e*thirteen / e*spec Slider

• PŘEVODNÍK

  Scott custom spider / SRAM Eagle Transmission 34T chainring

• ŘETĚZ

  SRAM CN GX Eagle Transmission

• KAZETA

  SRAM GX Eagle XS 1275 Transmission 10-52

• BRZDY

  SRAM Code Silver Stealth 4-Piston Disc

• ROTOR

  SRAM HS2 Rotors F&R 200mm

• ŘIDÍTKA

  Syncros Hixon iC Carbon
  Size S & M 15mm rise / Size L & XL 25mm rise
  back sweep 8° / 780mm
  Syncros Endurance lock-on grips

• SEDLOVKA

  Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm
  S size 140mm / M size 180mm / L & XL size 210mm

• SEDLOVKA

  Syncros Tofino 1.5 Regular
  Titanium rails

• HLAVOVÉ SLOŽENÍ

  Syncros - Acros Angle adjust & Cable Routing HS System
  Stainless / +-0.6° head angle adjustment
  ZS56/28.6 – ZS56/40 MTB

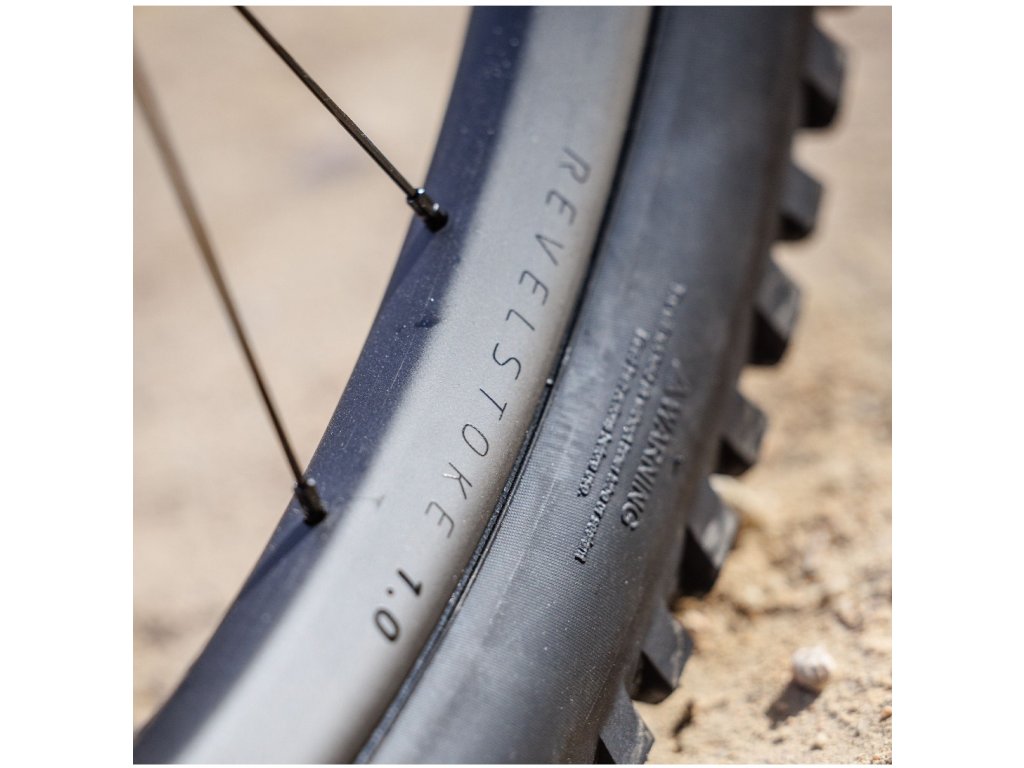

• SADA KOL

  Syncros Revelstoke 1.0-30 CL
  F: 15x110mm
  R: 12x148mm
  30mm Tubeless ready Carbon rim 28H
  DT Swiss Ratchet Hubs / XD Driver
  SRAM TyreWiz / Syncros Axle w/Removable Lever
  with 6mm Allen
  T30 and T25 Tools

• PŘEDNÍ PLÁŠŤ

  Maxxis Assegai / 2.6" / 60TPI Foldable
  Tubeless Ready / EXO+ 3C maxx Terra

• ZADNÍ PLÁŠŤ

  Maxxis Dissector / 2.6" / 60TPI Foldable
  Tubeless Ready / EXO+ 3C maxx Terra

• EXTRA

  SRAM AXS Extension Cord
  SRAM TyreWiz
  Syncros Fork Fender

• HMOTNOST V KG (CCA)

  18.6 (with tubes)

• HMOTNOST V LB (CCA)

  41.01 (with tubes)

• MAX. SYSTÉMOVÁ HMOTNOST

  128 kg
